SKU: BP902013-005 BRAND: BioPulse SUB-BRAND: FLOPulse

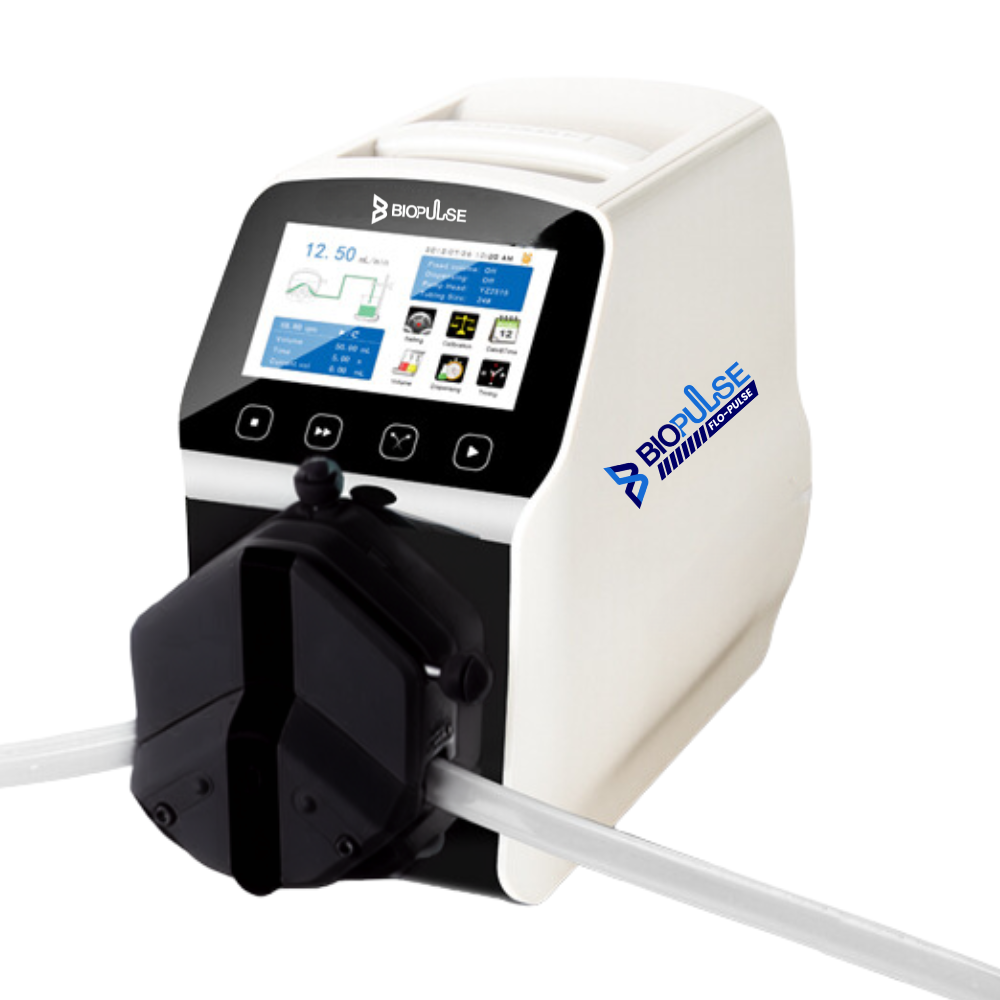

Digital Smart Dispense Pump System, Lab Series I, ABS

Achieve precision with our smart dispensing peristaltic pump—pre-set volume, time, and pause for unmatched control in applications demanding exact dispensing.

( 6 reviews )

Check if you have chosen the right pump for your specialized application

Online tool

To Know more,
Talk to the Experts Today

Custom Filling Programs	Store 60 Customizable Filling Modes as per your application
Dynamic Display	View data on one screen - Flow rate, parameters, config, etc.
Robust Motor	A Maintenance free motor enables high speed, control & accuracy.
Back Angle Suction	Enables high accuracy level in volumetric dispensing.
Weighted Dispensing	Integrated with the balance for accurate dispensing
Communication Interface	Comes with Anologue signal, RS232, RS485 MODBUS protocol
Operational Modes	Continuous flow, Fixed time & volume, Time based start/ stop
Smart Calibration	Functionality offsets flow to eliminate any errors

Flow Rate	0.0053 - 2580 ml/min
Motor Speed	0.1 - 600 rpm
Speed Resolution	0.01 rpm
Dispensing Accuracy	=±0.5%
Pause Time	0.1-9999.99 sec
Reversible (CW/CCW)	Yes
External Control	0-5V, 0-10V, 4-20 mA, RS232, RS485
Suction Back Angle	0-360 °
Display	4.3" Industrial grade True color LCD
Control	Touch screen & Mechanical Keypad
Housing Enclosure	ABS plastic
IP rating	IP31
Dimensions (LxWxH)	259 x 157 x 237 mm
Power	230 VAC, 50/60 Hz
Weight	4.40 kg

Tubing Wall Thickness	1.6mm WT
0.8 mm	0.005 - 32
1.6 mm	0.027 - 162
3.1 mm	0.093 - 560
4.8 mm	0.196 - 1180
6.4 mm	0.333 - 2000
7.9 mm	0.43 - 2580
